1. ORDER CODE: RR308

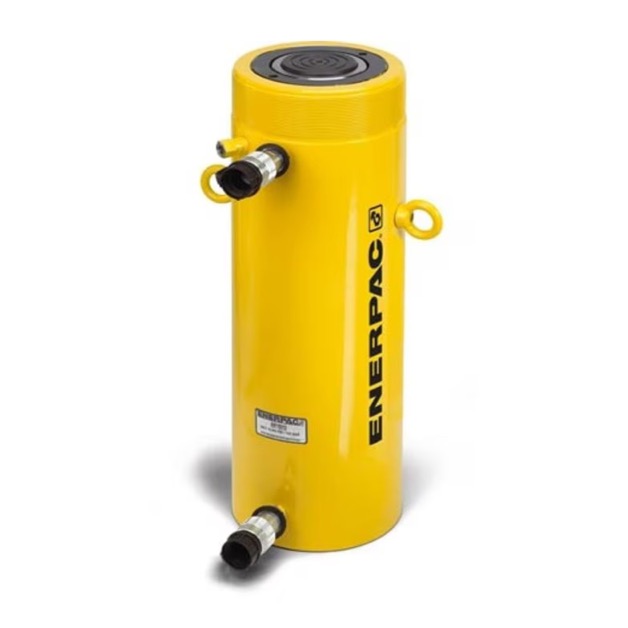

2. Description: 32.5 ton Capacity, 8.25 in Stroke, Double-Acting, General Purpose Hydraulic Cylinder
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Capacity Class | 30 Ton |
| Maximum Cylinder Capacity (Advance) | 295 kN |
| Stroke | 209 mm |
| Collapsed Height (A) | 394 mm |
| Extended Height (B) | 603 mm |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Solid |
| Material | Steel |
| Cylinder Effective Area (Advance) | 42.1 cm² |
| Cylinder Effective Area (Retract) | 19.1 cm² |
| Oil Capacity (Advance) | 879 cm³ |
| Oil Capacity (Retract) | 400 cm³ |
| Surface Treatment | Paint |
| Coupler | CR400 Coupler |
| Weight | 18 kg |
4. CONNECTION DIAGRAM FROM DOUBLE ACTING PUMP TO CYLINDER / Sơ đồ kết nối ống từ Bơm đến Kích thủy lực tác động Kép
