1. Order code: RRH606

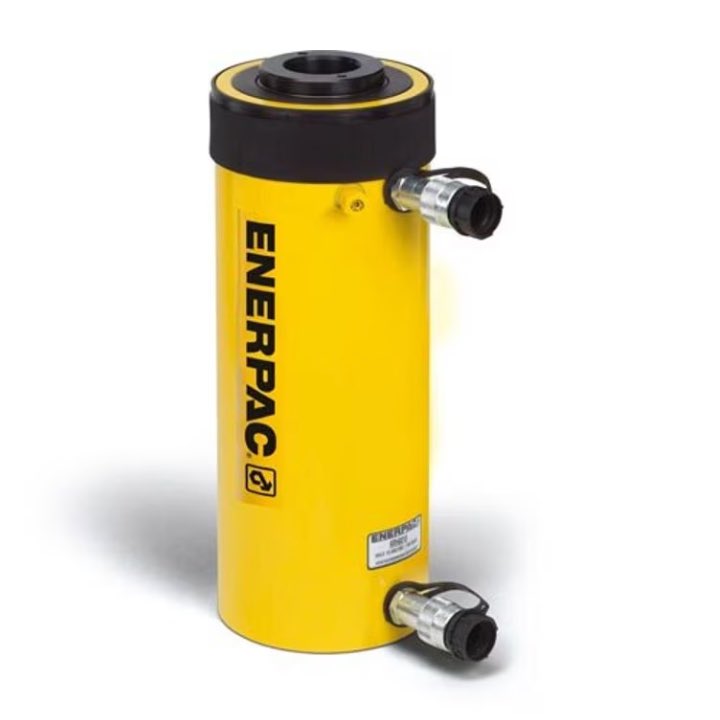

2. Description: 60 ton Capacity, 166mm Stroke, Double-Acting, Hollow Plunger Hydraulic Cylinder
3. Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 700 bar |
| Capacity Class | 60 tons |
| Max. Cylinder Capacity (Advance) | 576 kN |
| Max. Cylinder Capacity (Retract) | 380 kN |
| Stroke | 166 mm |
| Collapsed Height A | 323 mm |
| Extended Height B | 489 mm |
| Center Hole Diameter Y | 53.8 mm |
| Return Type | Double-Acting, Hydraulic Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area (Advance) | 82.3 cm² |
| Cylinder Effective Area (Retract) | 54.2 cm² |
| Oil Capacity (Advance) | 1366 cm³ |
| Oil Capacity (Retract) | 900 cm³ |
| Surface Treatment | Paint |
| Coupler | CR400 Coupler |
| Weight | 35 kg |
4. Connection Diagram
