1. Order code: P142

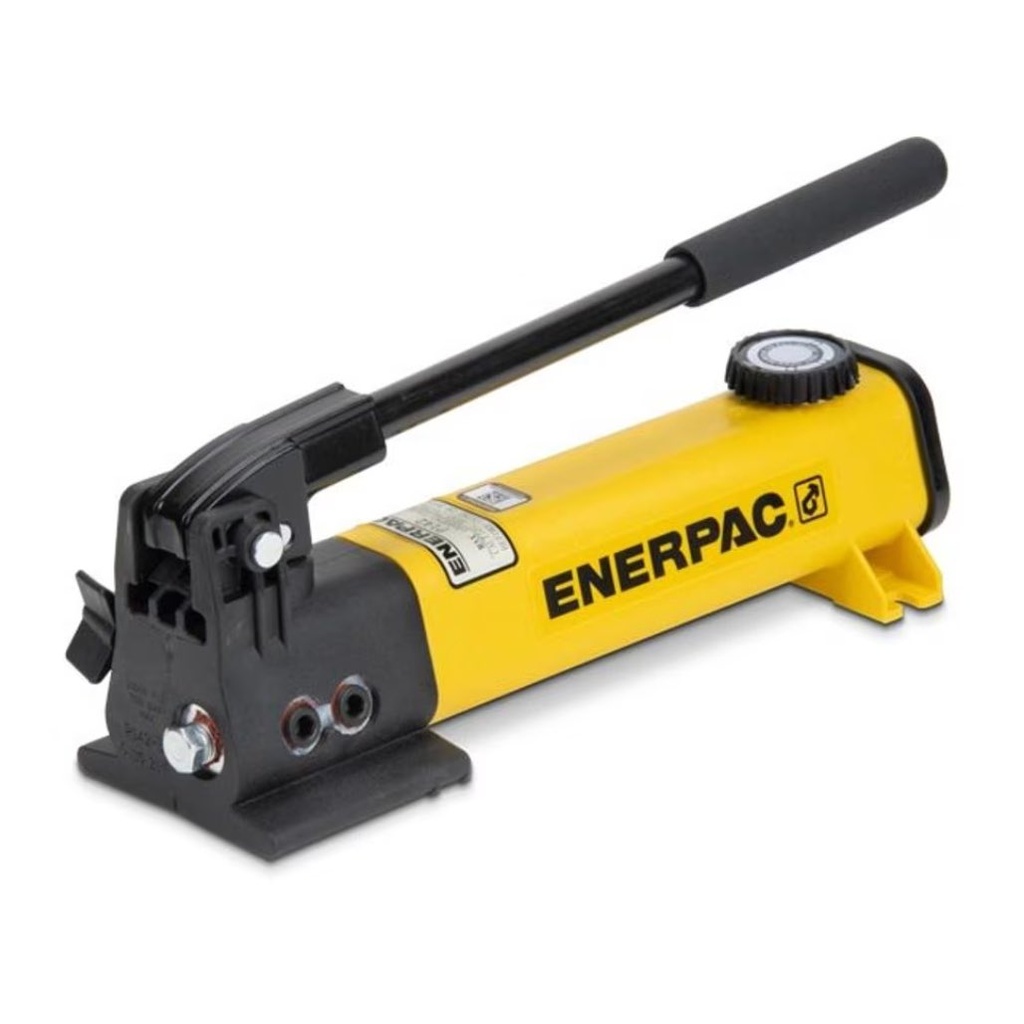

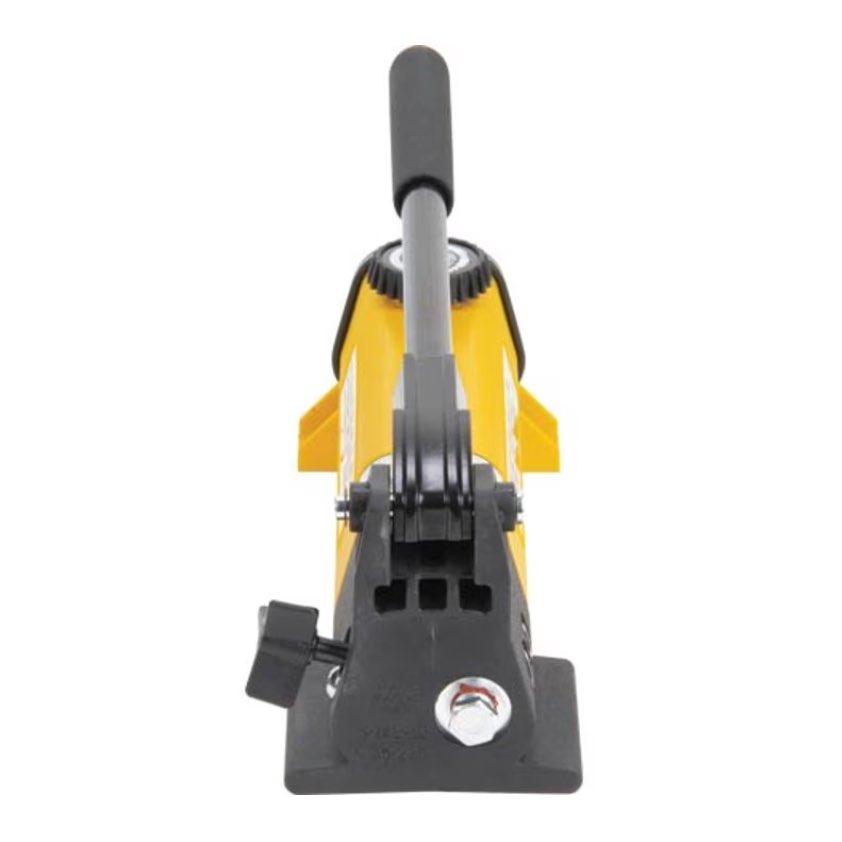

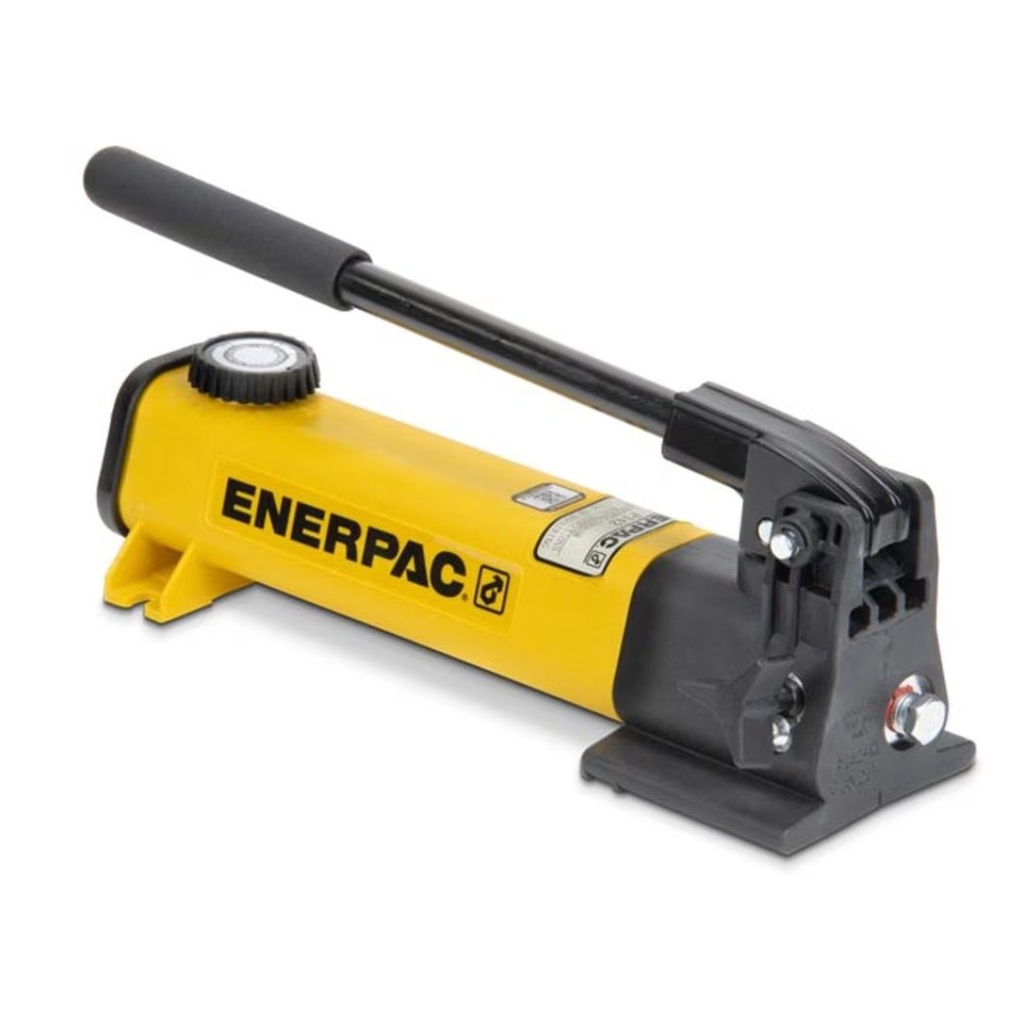

2. Description: Two Speed, Lightweight Hydraulic Hand Pump, 327 cm3 Usable Oil / Bơm tay thủy lực 2 cấp tốc độ, tác động đơn, thân nhựa, áp tối đa 700bar, bình dầu 327 cm3
3. Technical Specifications
| Specification | Value |
|---|---|
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatibility | Single-acting / Tác động đơn |
| Pump Type | Two Speed |
| Reservoir Capacity (cm³) | 327 |
| Usable Oil Capacity (cm³) | 327 |
| Maximum Flow at Rated Pressure | 0.90 cm³/stroke |
| Oil Displacement Per Stroke 1st Stage (cm³) | 3.62 |
| Oil Displacement Per Stroke 2nd Stage (cm³) | 0.90 |
| Maximum Handle Effort (kg) | 35.4 |
| Piston Stroke (mm) | 12.7 |
| Valve Operation | Manual |
| Power Source | Manual |
| Weight (kg) | 2.4 |
4. Connect Diagram from Davita for Single Acting pump to cylinder
